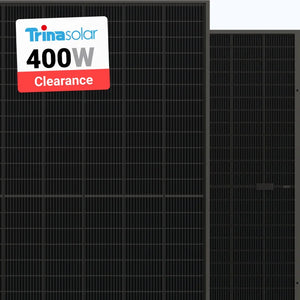

Trina Vertex S 400W Mono Solar Panel | TSM-NE09RC.05

High Efficiency | TopCon Bifacial Cells | Ultra-Reliable Performance

Power your residential, commercial, or light industrial solar projects with the Trina Vertex S 400W Mono solar panel — one of the most advanced and compact 400W class modules available. Featuring cutting-edge TopCon bifacial monocrystalline cells, this module delivers outstanding efficiency, ultra-low degradation, and a sleek design ideal for modern rooftops.

High Efficiency | TopCon Bifacial Cells | Ultra-Reliable Performance

Step into the future of energy with the Trina Vertex S 400W Mono Solar Panel, a premium photovoltaic module engineered to deliver maximum power density, space efficiency, and long-term performance. Designed with the latest N-type TopCon bifacial monocrystalline cell technology, this module ensures higher energy yields even under low-light conditions and diffuse sunlight, making it an ideal choice for rooftops in both residential and commercial environments.

🔍 Key Features

Peak Power Output: 400W (0 to +5W tolerance)
Module Efficiency: 20.0%
TopCon Bifacial Technology: Higher bifacial gain and durability
Compact Size: Optimized for residential & C&I rooftops
Load Resistance: 6000 Pa (front), 4000 Pa (rear)
Certified Safety: Fire Type 1 & Type 2 Compliant, IP68 Rated

📐 Technical Specifications

Parameter	Specification
Model	TSM-NE09RC.05_400
Power Output	400W (0 ~ +5W)
Efficiency	20.0%
Voltage @ Pmax (Vmp)	41.3V
Current @ Pmax (Imp)	9.68A
Open Circuit Voltage (Voc)	49.2V
Short Circuit Current (Isc)	10.30A

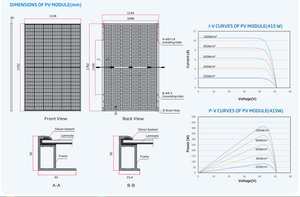

Dimensions	1762 × 1134 × 30 mm
Weight	21.3 kg (47.0 lb)
Connector	MC4 EVO2
Cell Type	N-type TopCon Bifacial Mono
Temperature Coefficient (Pmax)	-0.30% / °C
Max System Voltage	1500V DC
Warranty	25 Years Product & Power Warranty

📦 Packaging & Shipping

Ships in boxes of 36 modules. Each 40’ container holds up to 792 pieces.
Pallet Dimensions: 1800 × 1135 × 1259 mm — Pallet Weight: 829 kg

Trina Vertex S Mono 400W Bifacial - TSM-NE09RC.05_400
