SMA Sunny Boy Storage 5kW AC Coupled Battery Inverter (SBS5.0-US-10)

SMA Sunny Boy Storage 5kW AC Coupled Battery Inverter (SBS5.0-US-10)

MPN: IV2005
Quantity must be 1 or more
Regular Price:
Regular price
Request For Quote

    5kW Sunny Boy Storage AC Coupled Battery Inverter

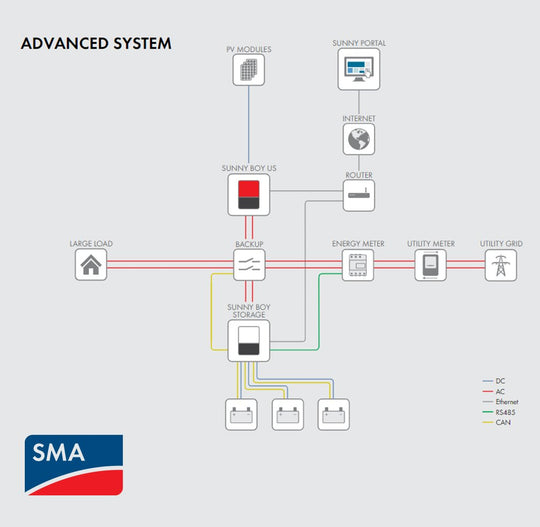

    The Sunny Boy Storage SBS5.0-US-10 is a single phase 5kW, AC-coupled battery inverter. This type of inverter sometime also known as power inverter or hybrid inverter. The Sunny Boy Storage is design in such a way that in integrate your existing grid-tied PV system with power back-up. It can be used with industry-leading, high-voltage batteries and on-grid systems.

    The AC-coupled architecture will enable easy installation with three 10A individual battery inputs. And if needed the three inputs can made to form one 30A input plug. With the most cost effective, versatile and innovative residential storage the SMA Sunny Boy Storage SBS3.8-US-10 come extremely useful during grid power failure and secure power supply up to 2000W during both day and night.

    Some Key Features & Advantage:

    • Nominal Power Input 5kW
    • Secure Power Output 2kW
    • Transformer-less Inverter
    • Maximum efficiency 97.5%
    • Arc-fault protection
    • Integrated DC Disconnect
    • Easily connected to the internet via Ethernet/WLAN through Web-connect
    • Can be monitored through the SMA Sunny Portal


    AC Frequencies : 60 Hz
    Capacity: 5kW
    Certifications: Please Check Datasheet
    Dimensions: 21.1 x 28.5 x 7.8 Inches
    Maximum DC input current: 40 Amp
    Min Operating Voltage : 360 Volt
    Number of MPPT's: 3
    Peak Efficiency : 97.50%
    SKU: IV-SBS5.0-US-10
    Weight: 26 kg (57 lb.)
    AC Voltages : 240 V
    CEC Efficiency: 97.50%
    Continuous AC Power Output : 5 kVA
    Max Operating Voltage: 240 Volt
    Maximum DC input voltage : 100 Volt
    MPN: IV2005
    Operating Temperature: -25 C° to 60° C
    Recommended PV Input (STC) : 6250 W
    Warranty: 10 Years
